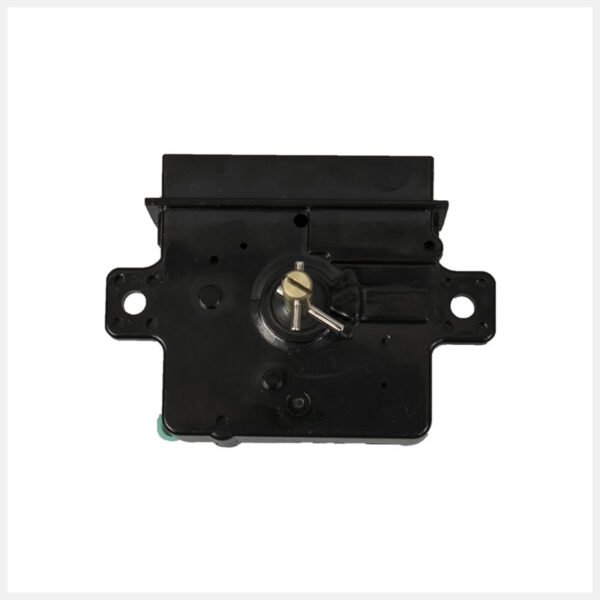

WASHING MACHINE TIMER DXT-15SF-Q | 15 MIN
₹ 199.00

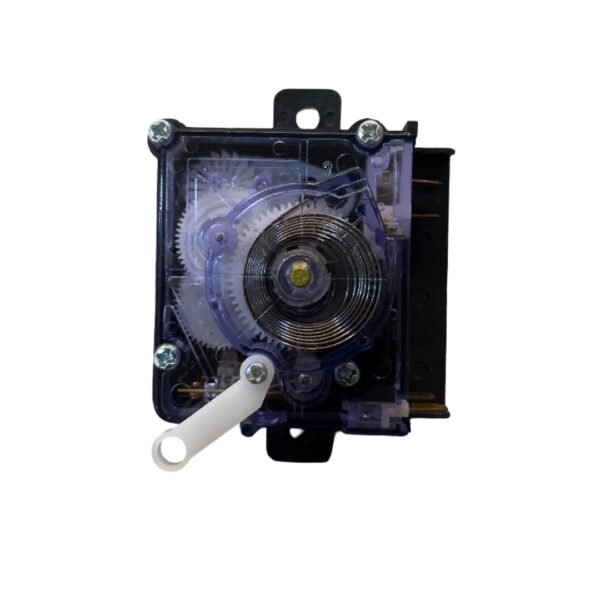

The DXT-15SF-Q is a high-quality mechanical timer switch designed for use in home appliances like washing machines, dryers, ovens, heaters, and other timed devices. This model is built with a clear casing for visual gear inspection and a durable spring-loaded mechanism, allowing accurate countdown timing up to 15 minutes.
Manufactured by Ningbo Timer, this model features a compact design, reliable performance, and high mechanical endurance, making it ideal for OEM replacements and DIY repairs. The dual mounting flanges and standard shaft make it easy to install in various machine panels.
-
Model: DXT-15SF-Q
-
Voltage Rating: 250V AC
-
Current Rating: 3.5A
-
Timing Range: 0–15 minutes
-
Operating Direction: Clockwise
-
Mounting Type: Panel mount with dual flanges
-
Material: High-durability plastic with transparent front cover
-
Visible Gears: Easy inspection and maintenance
-
Drive Shaft: Metal with plastic handle mount
-
Terminal Type: Spade/lug connector compatible
-
Life Cycle: ≥10,000 mechanical operations
-
Temperature Range: –10°C to +55°C
-
Dimensions: ~65mm × 60mm × 40mm (approx.)
| Weight | 0.07 kg |
|---|---|
| Dimensions | 8 × 6 × 6 cm |
