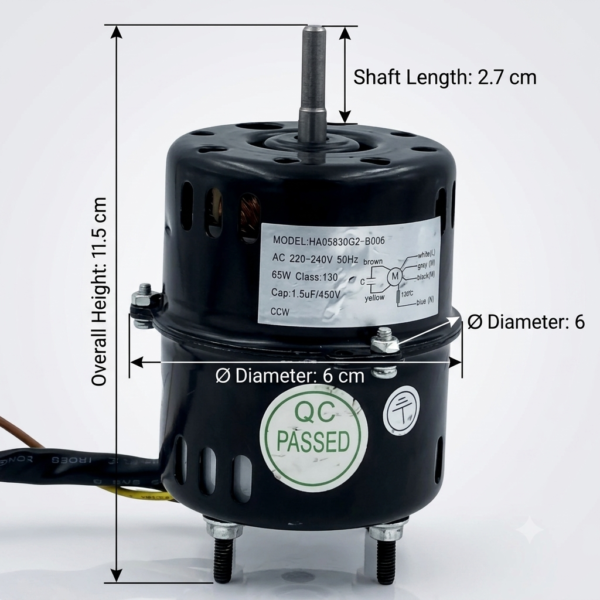

Chimney Exhaust Motor High-Performance 240V
₹ 1 399.00
This chimney motor is a high-efficiency AC motor designed for kitchen exhaust systems. Operating at 220–240V and 50Hz, it delivers consistent performance with 65W power consumption. Built with Class 130 insulation and equipped with a 1.5µF / 450V capacitor, it is suitable for continuous counter-clockwise (CCW) rotation. The motor is protected with a thermal fuse rated at 130°C, ensuring safe operation under heavy load or prolonged use.
-
Model Number: HA05830G2-B006
-
Voltage: AC 220–240V / 50Hz
-
Power Output: 65W
-
Insulation Class: Class 130
-
Rotation Direction: CCW (Counter-Clockwise)
-
Capacitor: 1.5µF / 450V
-
Thermal Protection: 130°C thermal cutoff
-
Wire Configuration:
-
White (Low speed)
-
Gray (Medium speed)
-
Black (High speed)
-
Blue (Neutral)
-
Brown (Common)
-
Yellow (Capacitor)
-
| Weight | 0.8 kg |
|---|---|
| Dimensions | 7 × 7 × 12 cm |
